ZQ35D load bearing drag chain conveyor parts

Cable Drag Chain Cable Chain Special Hot Selling Metal Cable Carrier Drag Chain

---

Cable Drag Chain - The hoses & electrical cables connected to machinery parts in motion may get damaged as direct tension is applied on them; instead the use of Drag Chain eliminates this problem as the tension is applied on Drag Chain thus keeping the Cables & hoses intact & facilitating smooth movement.

advantage:

high degree of protection against mechanical damage of different conductors,

high-speed movement of equipment and machinery,

the ability to use the whole length of the track as a work area.

Trucking current feeder is a necessary component of any industrial machinery, machine tool, crane, - cables, wires, hydraulic and pneumatic hoses, which are constantly exposed to mechanical and climatic influences.

Plastic and steel energy chains may be used in a temperature range from -40 ° C to + 130 ° C.

Stainless cable chain successfully operated in aggressive chemical environment.

At the request of the customer, we complete the cable carrier system the fixing and guide systems in the form of bearing trays, brackets, rollers, etc.

Our advantage is the development of projects and supply assembled drag chains with cables inside.

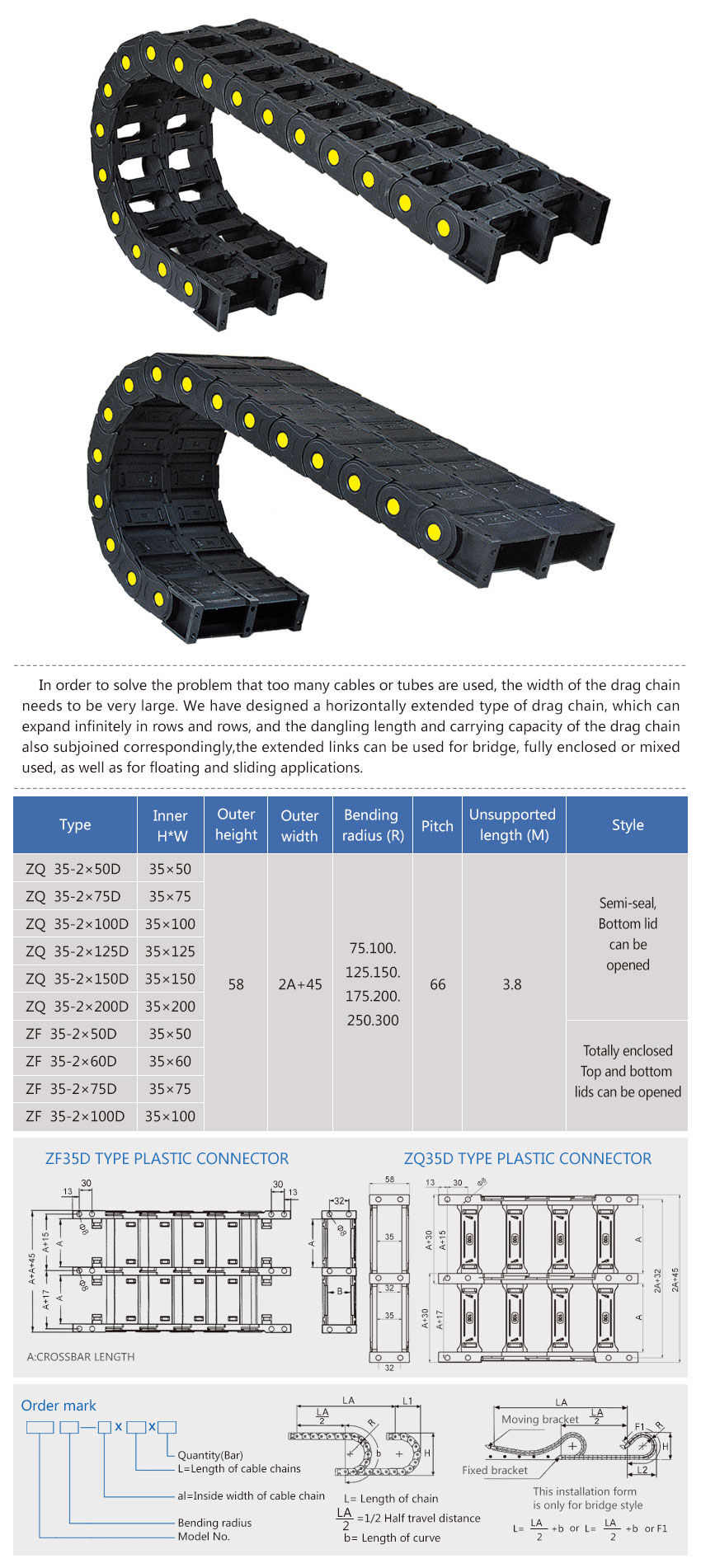

Model table :

Model	Inner H×W(A)	Outer H	Outer W	Style	Bending Radius	Pitch	Unsupported length
ZQ 35-2x50D	35x50	58	2A+45	Bridge type Top and bottom lids can be opened	75.100. 125.150.175.200.250.300	66	3.8m
ZQ 35-2x75D	35x75
ZQ 35-2x100D	35x100
ZQ 35-2x125D	35x125
ZQ 35-2x150D	35x150
ZQ 35-2x200D	35x200



Application :

Cable drag chains can be used in a variety of applications, wherever there are moving cables or hoses. there are so many applications include; machine tools, process and automation machinery, vehicle transporters, vehicle washing systems and cranes. Cable drag chains come in an extremely large variety of sizes.
